The selection of materials for busbars is a critical decision that can significantly impact the efficiency and reliability of power distribution systems. While copper has long been the traditional choice for conducting electricity, aluminum has steadily gained popularity as a preferred alternative, especially in low voltage applications.
Understanding Low Voltage Busbar
A low voltage busbar is a conductive bar or strip that serves as a central point for distributing electrical power to various circuits or loads within a building or industrial setting. It is used in low voltage systems where the voltage level is typically below 1000V.
Low Voltage Busbar Design Consideration
In the design of a low voltage busbar, meticulous attention to various critical factors ensures optimal functionality and system safety:
Current Carrying Capacity
The busbar’s ability to carry anticipated currents without overheating is paramount. Calculating the cross-sectional area, material conductivity, and cooling provisions is vital in determining its safe current-carrying capacity. Adequate sizing and material selection prevent thermal issues and ensure efficient power distribution.
Voltage Drop Minimization
To guarantee that connected loads receive the necessary voltage levels consistently, the busbar design should prioritize minimizing voltage drop. Factors like conductor length, material resistance, and connection quality play crucial roles in maintaining voltage stability across the system.
Efficient Heat Dissipation
Implementing robust ventilation and cooling strategies is essential to manage heat generated during current transmission effectively. Proper airflow, heat sinks, or active cooling mechanisms can prevent temperature build-up, safeguarding components and maintaining system efficiency.
Fault Current Resilience
Designing the busbar to withstand fault currents without damage is critical for system safety. Ensuring appropriate fault current ratings through robust construction, fault protection devices, and system coordination guarantees operational integrity and minimizes risks associated with electrical faults.
Low Voltage Busbar Applications
The versatile application of low voltage busbars encompasses diverse settings where efficient power distribution is vital. In industrial domains, these busbars efficiently deliver power to machinery and control systems, sustaining the core operations of manufacturing facilities and warehouses. Within commercial structures, they play a pivotal role in supplying power to lighting systems, HVAC units, and elevators, ensuring a consistent and stable power flow throughout the building. In data centers, low voltage busbars are indispensable for distributing power to critical components like servers and networking equipment, sustaining uninterrupted operations. Similarly, in renewable energy systems, telecommunication infrastructure, residential buildings, transportation networks, and healthcare facilities, low voltage busbars facilitate reliable and safe power distribution, underpinning the functionality of various systems and services.

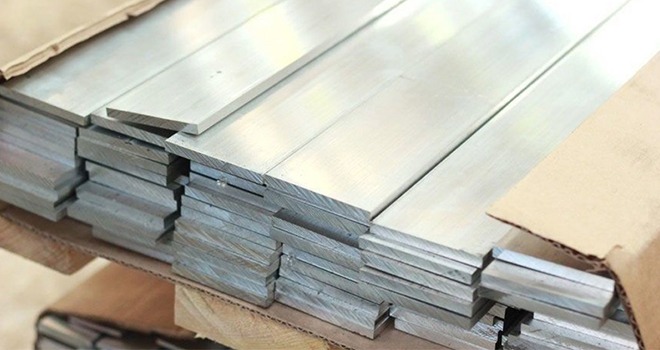

Why Use Aluminum Bus Bar In Low Voltage Environment?
Aluminum bus bar has emerged as a prevalent choice in low voltage environments, offering a compelling balance of conductivity, cost-effectiveness, and reliability. When compared to other materials like copper, aluminum demonstrates notable advantages that make it a preferred option for various busbar applications. In the realm of low voltage busbar design considerations, aluminum stands out for its ability to effectively carry current, minimize voltage drop, dissipate heat efficiently, and withstand fault currents. These characteristics align well with the demands of diverse low voltage systems, ensuring optimal performance and reliability. Let’s delve deeper into the reasons why aluminum bus bar is widely utilized and its compatibility with different low voltage busbar applications.
Advantages of Aluminum in Low Voltage Busbars for Heat Dissipation

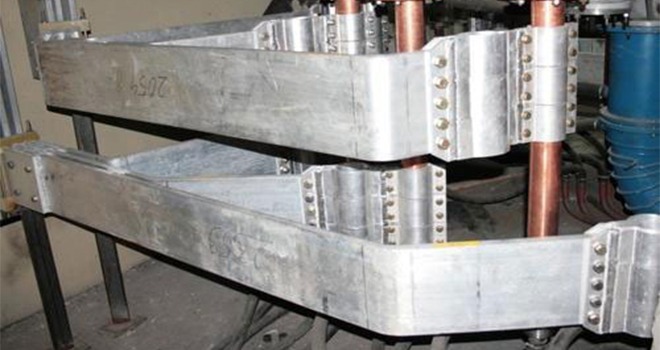

Aluminum is highly favored for low voltage busbars due to its superior heat dissipation capabilities stemming from its larger surface area and efficient thermal exchange. Hollow and extruded profile aluminum busbars offer enhanced heat dissipation through increased surface area, facilitating more effective thermal regulation, crucial in confined spaces. Extruded aluminum busbars can be tailored to boost natural convection, a key method of heat dissipation. Modern aluminum busbars, featuring hollows, protrusions, and ionized surfaces, are engineered to optimize heat dissipation and reduce resistivity significantly.
Aluminum's Efficiency in Low Voltage Busbars
Contrary to common belief, aluminum busbars are more conductive than copper on a weight basis. Despite requiring a larger cross-sectional area for equivalent current ratings, aluminum’s lighter weight makes it 50% more conductive per kilogram than copper. Additionally, aluminum busbars exhibit impressive mechanical strength, capable of withstanding high currents and the stresses of thermal expansion. As cost-efficiency and environmental sustainability rise in importance, aluminum’s innate properties are asserting their prominence in the realm of low voltage busbar applications.
