Aluminum housing, or aluminum enclosure, valued for its robust properties, is utilized in a wide range of devices. This blog concentrates on aluminum housings for electirc motors, exploring diverse manufacturing processes for various environments of use.
Aluminum Housing Types
There are primarily two types of aluminum motor housings based on the method used for dissipating heat from the motor : air cooled aluminum housing and water cooled aluminum housing.

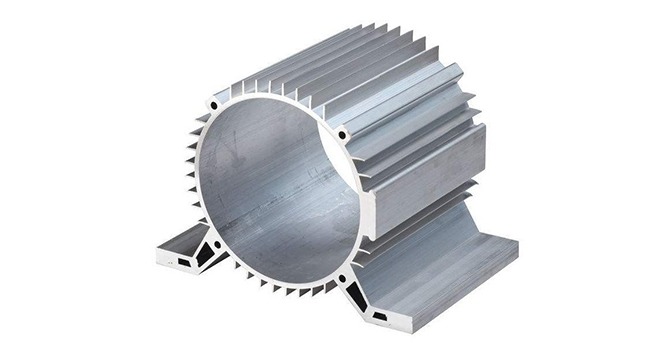

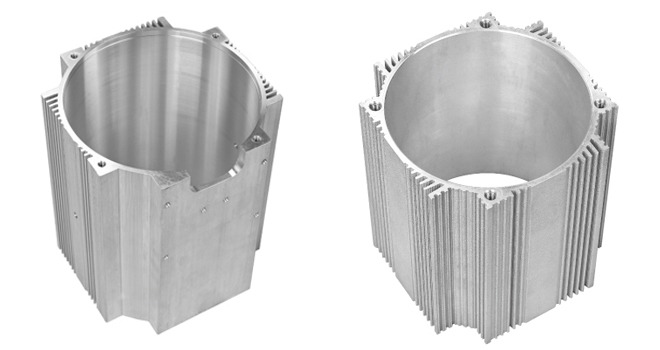

Air Cooled Aluminum Housing
Air-cooled aluminum housing utilizes air circulation, often aided by fans, to disperse the heat produced during motor operation. These housings are specifically crafted with fins or similar structures to enhance the surface area, facilitating effective heat dissipation through convection.The manufacturing process involves several key steps:
Design and Casting
The housing design is crucial for effective air cooling. It is often cast from aluminum alloy using methods like die casting or sand casting.
Machining
After casting, the aluminum housing undergoes machining processes like milling, drilling, and tapping to achieve the desired dimensions and surface finish.
Heat Sink Design
The aluminum enclosure is designed with fins or other structures to increase the surface area for enhanced heat dissipation.
Mounting Points
Mounting points for motor components are integrated into the housing during manufacturing to ensure proper assembly.
Surface Treatment
Surface treatments like anodizing or powder coating may be applied for corrosion resistance and improved aesthetics.
Quality Control
Throughout the process, quality control measures are implemented to ensure the housing meets specified tolerances and standards.

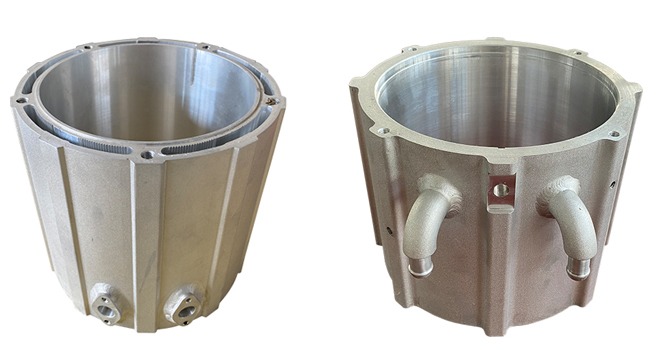

Water Cooled Aluminum Housing
Water-cooled aluminum housing refers to motor enclosures that utilize a water circulation system to remove heat from the motor. Water absorbs heat from the motor and is then circulated to a heat exchanger where the heat is transferred to the surrounding environment, allowing for effective cooling.

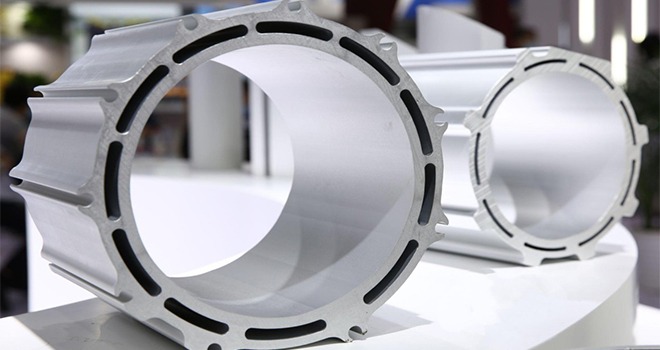

Water-cooled aluminum motor housing is crafted using a sophisticated manufacturing process. This involves utilizing hollow extruded profiles in conjunction with friction stir welding techniques to ensure its development.
Manufacturering Process Of Water-cooled Extruded Aluminum Housing
The manufacturing process of water-cooled aluminum motor housing begins with the selection of extruded aluminum profiles, specifically tailored to incorporate coolant channels within the structure, ensuring efficient heat dissipation.
Next, the extruded aluminum housing undergoes friction stir welding, a solid-state joining technique, to establish a durable and seamless connection. This welding process is crucial for maintaining the integrity of both the coolant channels and the overall structure of the extruded aluminum housing.
The utilization of these extruded aluminum profiles not only enables the integration of coolant channels but also contributes to the lightweight nature of the housing, making it an ideal choice for weight-sensitive applications.
Overall, the amalgamation of extruded aluminum profiles and friction stir welding in the production of water-cooled aluminum motor housing results in a resilient, efficient, and precisely engineered component. This design is specifically crafted to enhance heat dissipation and elevate the performance of the motor.
Aluminum Motor Housing: Air VS Water
When considering the optimal cooling solution for aluminum electric motor housings, the choice between air-cooled and water-cooled systems plays a critical role. Evaluating the advantages and disadvantages of each option is essential in determining the most suitable cooling method for specific applications.
Air Cooled Electric Motor Housing
Advantages
- Simple, cost-effective design: Air-cooled electric motor housings typically require only a single fan for heat dissipation, resulting in a straightforward structure and lower costs. This simplicity makes them practical for users with budget constraints.
- Easy installation: The uncomplicated structure of air-cooled aluminum motor housings allows for straightforward installation, without the need for specialized technicians for complex setup and maintenance.
- Convenient maintenance: Maintenance of air-cooled aluminum motor housings is relatively easy, usually involving routine cleaning of the fan and radiator components.
Disadvantages
- Heat dissipation efficiency affected by environmental conditions: The effectiveness of heat dissipation in air-cooled aluminum motor housings is significantly influenced by external factors like temperature and humidity. High temperatures or humidity levels can impact their cooling efficiency.
- Increased noise levels: Due to the reliance on fans for heat dissipation, air-cooled aluminum motor housings can generate noticeable noise levels, potentially causing disturbances in their surroundings.
- Limited heat dissipation area: The heat dissipation area of air-cooled electric motor housings is constrained, which may lead to inadequate cooling for high-power motors.
Water Cooled Electric Motor Housing
Advantages
- Effective heat dissipation: Water-cooled aluminum enclosures use water circulation to efficiently dissipate heat generated by the motor, maintaining a stable operating temperature. Their cooling efficiency often surpasses that of air-cooled counterparts.
- Reduced noise levels: Water-cooled aluminum motor housings operate quietly, minimizing disruptions in their environment.
- Environmental friendliness: Water-cooled aluminum motor housings do not pollute the environment, representing a more eco-friendly cooling solution.
Disadvantages
- High maintenance costs: Repairing water-cooled aluminum motor housings can be complex and expensive. In cases of malfunctions, professional technicians may be required for diagnosis and parts replacement.
- Limited load-bearing capacity: Under high-load conditions, water-cooled aluminum motor housings may exhibit poorer performance and a higher likelihood of failures.
- Water consumption: Water-cooled electric motor housings consume significant water resources, making them less suitable for regions with water scarcity.
Which One Is The Best?
Choosing the best cooling solution between air-cooled and water-cooled aluminum motor housings depends on the specific requirements of the application.
For applications prioritizing cost-effectiveness, simple maintenance, and installation, the air-cooled aluminum motor housing may be the optimal choice. Conversely, if superior heat dissipation, lower noise levels, and environmental considerations are paramount, the water-cooled aluminum motor housing could be the preferred option.
